Sotera FR450B 13 GPM 115V Gear & Motor Oil Pump with Manual Nozzle and Hose
Model: FR450B

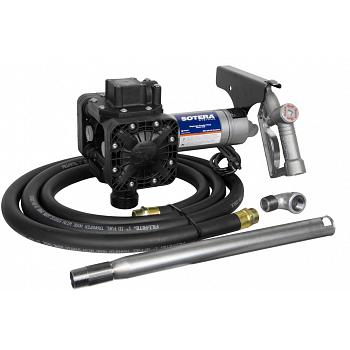

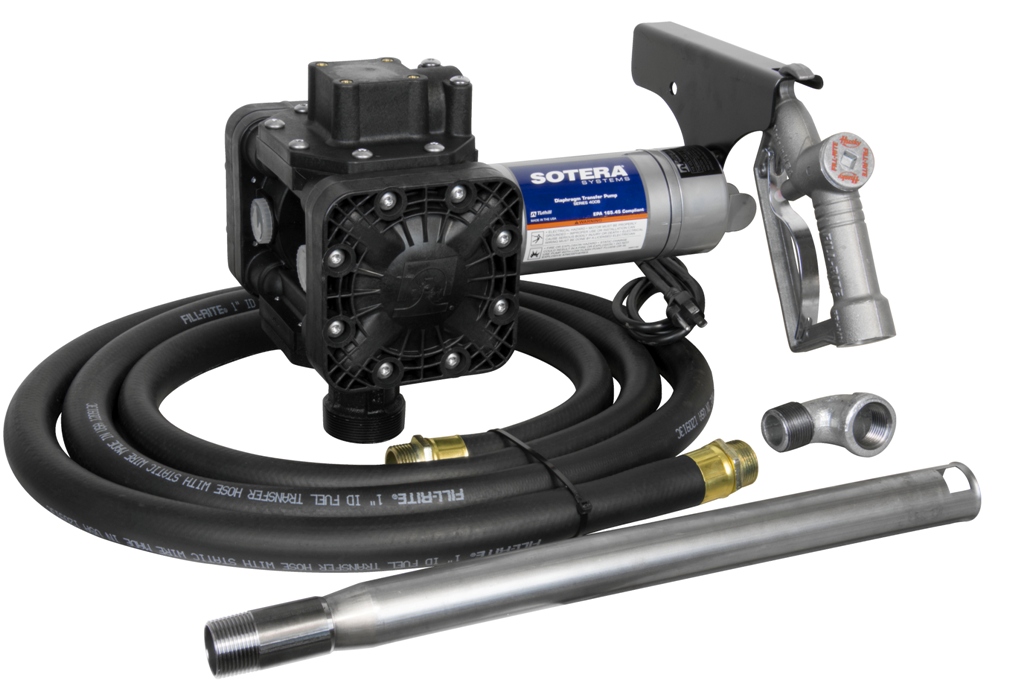

The Sotera FR450B is a 115V AC 13GPM standard-duty, non-explosion-proof motor lubricant transfer pump. The pump utilizes a glass-reinforced polypropylene housing that is designed with Hytrel diaphragms, nitrile elastomers, 2" bung adapter inlet with 1" NPT straight flange outlet, 1" x 12' transfer hose, 1" manual nozzle, and 23" to 40 1/2" telescoping steel suction pipe. The FR450B is designed to transfer oils and lubricating fluids. Please always refer to the Sotera Chemical Resistance Guide for compatibility.

Features

• Able to pump fluids with particles up to 0.100 in. Dia and viscosities up to 3700 CPS
• 1" Inlet/1" outlet NPT Threads
• Pump is able to run dry without damage (30-minute duty cycle - not for continuous operation)
• Quiet operating pump with maximum sound level of 76 dBA
• Thermal overload protection prevents motor from overheating during abnormal usage
• Great for pumping thick fluids in cold weather environments
• 8" Hg 'Dry Lift' [9 ft (2.7M) of water]
• Maximum outlet pressure 15 PSI (1 Bar)
