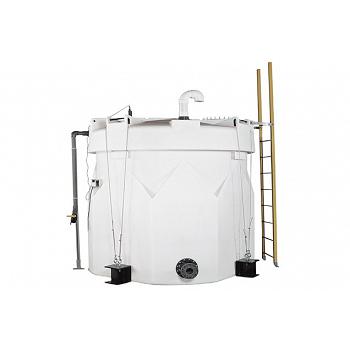

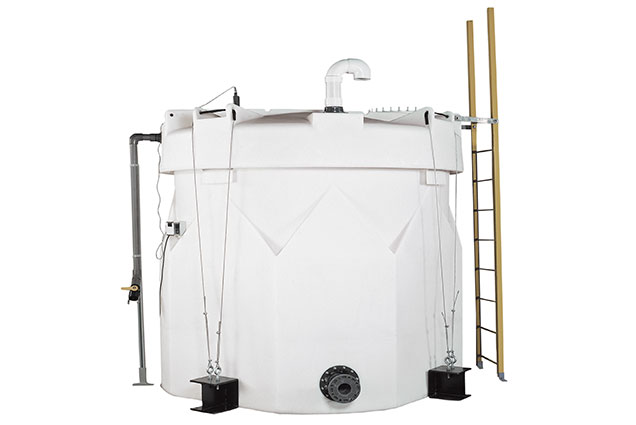

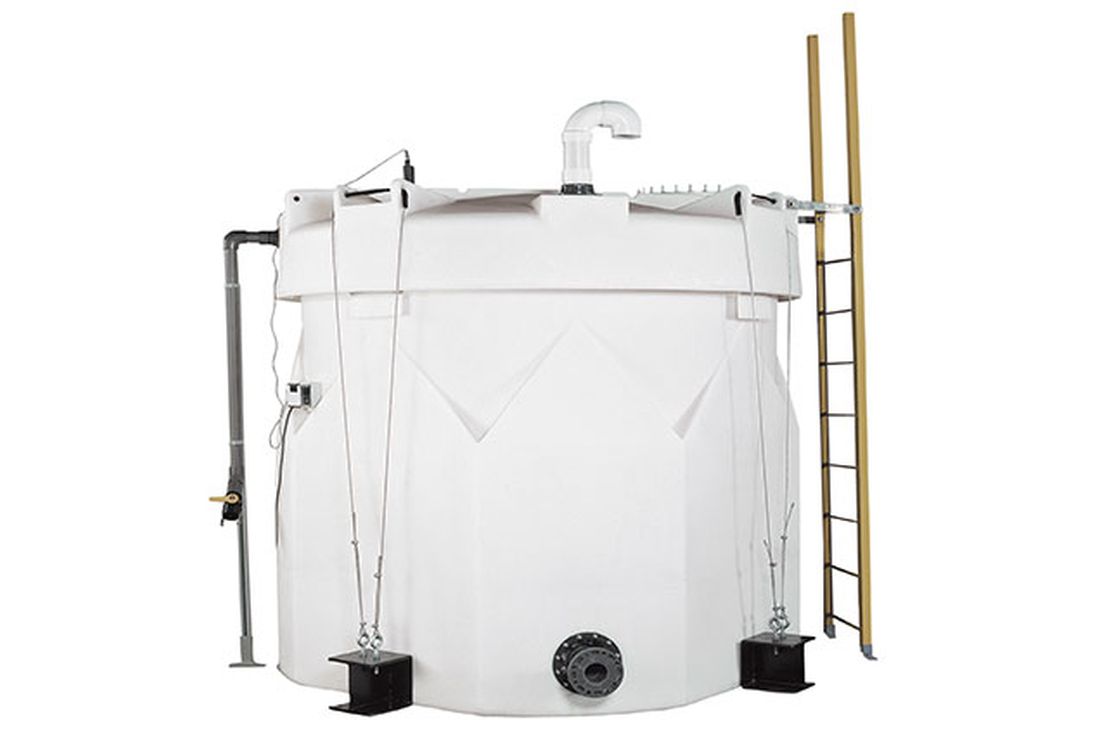

Snyder Double Wall Captor Containment System - 6500 Gallon XLPE (1.9 SG)
Model: SII-5670000N42

This is the Snyder Double Wall Captor Containment System - 6500 Gallon XLPE - Specific Gravity 1.9. The Captor Containment System protects bulk storage profits without jeopardizing safety or the environment.

Snyder's revolutionary Captor Double Wall Tanks and Containment Systems are designed to alleviate the ever-changing environmental and safety concerns regarding bulk chemical storage and containment for the 21st century.

The Captor double wall tanks unique tank-in-a-tank design enables users and specifiers to incorporate advance performance and safety features on a bulk-handling system, which provides total containment protection. Captor's double wall tank construction is completely enclosed so that external matter, such as dust, rain and snow is prevented from collecting in the outer containment tank.

Besides delivering unparalleled performance benefits, Captor Containment Systems also contribute to your company's bottom line by significantly reducing installation and procurement cost. Every Captor is shipped fully-assembled on either a standard or wide load flat bed trailers, which reduces comparable costs by an average of 35 percent.

Features include-

• Flanged Outlets and other fitting designs can be securely fastened and sealed to many of the large flat areas located on the top section of the tank (optional).
• Vent Assemblies are available in a variety of sizes to relieve vacuum and pressure.
• Fill and/or Draw Pipe Assemblies can be installed to facilitate different material loading or un-loading requirements (optional).
• U.F.O. (Unified Fitting Outlet) is uniquely designed to mechanically seal fitting outlet through both the inner and outer tank walls. Material unloading is easier and more cost effective than pumping contents from the top of the tank (optional).
• Bolted and Threaded Manways are available in sizes up to 24”. Standard size is an 18” threaded manway.
• OSHA Compliant Ladders are available with and without cages in fiberglass and steel construction.
• Molded in Tie-Down Lugs interface with optional cable restraint system to meet seismic and 150 mph wind load requirements.
• Outer Containment Tank provides 115-120% of inner tanks capacity for added safety factor. Complies with 40 CFR-264.193.
• Industrial (ASTM D1998) design standards.
• Double Wall Tank Construction encloses and interlocks outer and inner tank to prevent rain, snow, and debris from entering outer containment tank.
• All materials are UV stabilized for long-term outdoor service. There are material options for a diverse range of applications.

Detailed Specifications-

• Primary Tank Capacity: 6500 gallon
• Length: 120 in
• Width: 120 in
• Height: 199 in
• Weight: 5300 lbs
• Primary Tank Specific Gravity: 1.9
• Primary Tank Material: Cross-linked, high density polyethylene (XLPE).

  • Optional upgrade for sulfuric acid resin #880046 - contact us for a quote.
  • Optional upgrade for sodium hypochlorite opaque white resin #880059 - contact us for a quote.
• Secondary Outer Containment Tank Material: High-density linear polyethylene (HDLPE) with 1.5 specific gravity. This high-density linear polyethylene complies with FDA Regulation 177.1520 and NSF/ANSI 61 standards.
  • Optional upgrade for cross-linked, high density polyethylene (XLPE) with specific gravity of 1.5 or 1.9, or high-density linear polyethylene (HDLPE) in 1.9 specific gravity, in the natural white color - contact us for a quote.
• Color: Natural White
• Fill Opening: 18 inch threaded manway
• Note: Images may not be 100% accurate, please refer to product drawing.
