Required information

Full Name:

E-Mail Address:

Phone Number

Delivery City

Delivery Zip Code

Address Type?

Residential Commercial

Special Instructions:

Boat Manufacturer

Boat Model

Model / Part Number Of Current Tank (Optional)

Gallons Of Current Tank (Optional)

Add Mounting Tabs?

1 tab on each short end 1 tab on each long end Tabs on all 4 sides No

Fuel Gauge or Sending Unit?

None Add a tank mounted fuel gauge Add a sending unit

5/8 Inch Vent Orientation

Straight Up 90 Degrees 45 Degrees

1 1/2 Inch Fill Orientation

Straight Up 90 Degrees 45 Degrees

Important Notes:

Fuel fill adds 2 1/2" to overall height
Mounting brackets add 1 1/2" to each side of length and/or width at bottom of tank – mounting bracket location will be standard unless noted otherwise
New EPA rules only apply to boat manufacturers or if the tank was already EPA Compliant
Tank comes standard with an electronic sending unit that reads 240 Ohms at Empty and 33 Ohms at Full
Tank comes standard with 1 1/2 inch fill and 5/8 inch vent (hose barb style)
Most tanks come with baffles in 15 to 20 inch compartments

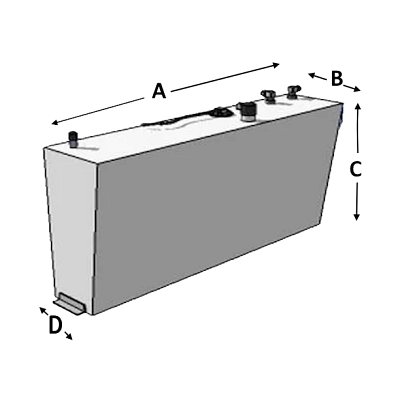

A Dimension (Inches)

B Dimension (Inches)

C Dimension (Inches)

D Dimension (Inches)

Calculated Gallons

Quantity

Manufacturers

Custom Below Deck Saddle Bottom (Remote Fill) Marine Fuel Tank Request Form
