Sotera SS445BX700 13 GPM 12V Mix-n-Go Recirculation Pump with 825 Meter (EPDM Gaskets and Seals)
Model: SS445BX700

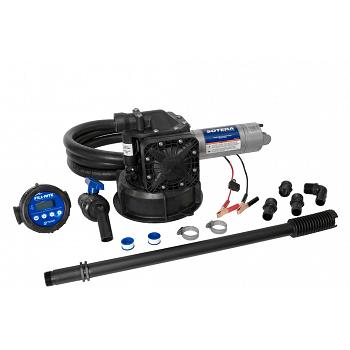

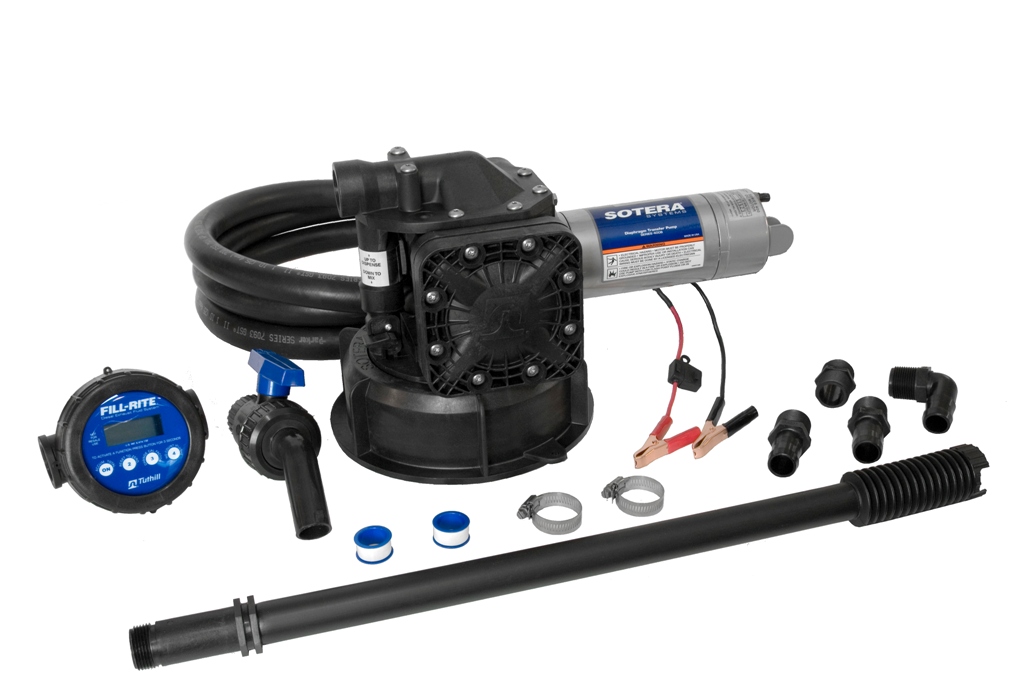

The Sotera SS445BX700 Mix-N-Go with recirculation valve 12V DC non-explosion-proof chemical transfer pump that is capable of producing up to 13GPM at 15PSI (1 Bar) maximum pressure. This pump utilizes a glass-reinforced polypropylene housing that is designed with Santoprene diaphragms, EPDM elastomers and a 1" NPT fittings. The SS445BX700 is designed for the transfer of agricultural chemicals, mild acids, soaps and water. Please always refer to the Sotera Chemical Resistance Guide for compatibility. The pump contains 1" accessories such as a 825 meter, discharge hose, ball valve nozzle, poly telescoping tube with a bellows end (28-1/2" - 48-1/2"), check valve, as well as various fittings and clamps. This model is the same as a SS445BX except all gaskets and seals are EPDM.

Features

• Able to pump fluids with particles up to 0.100 in. Dia and viscosities up to 3700 CPS
• 1" Inlet/1" outlet NPT Threads
• Pump is able to run dry without damage (30-minute duty cycle - not for continuous operation)
• Quiet operating pump with maximum sound level of 76 dBA
• Thermal overload protection prevents motor from overheating during abnormal usage
• Great for pumping thick fluids in cold weather environments
• 8" Hg 'Dry Lift' [9 ft (2.7M) of water]
• Maximum outlet pressure 15 PSI (1 Bar)

Detailed Information

  Sotera Product Manual

  Sotera Chemical Resistance Guide
