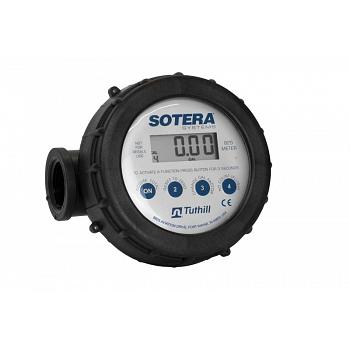

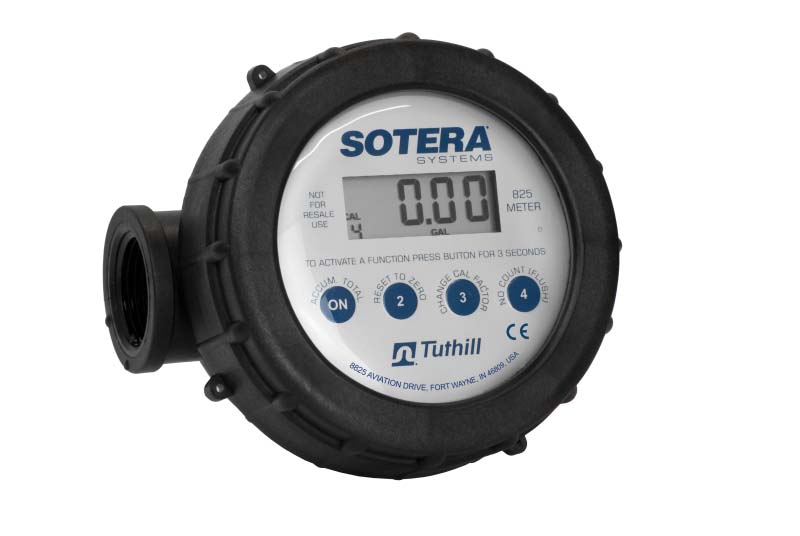

Fill-Rite 825 Nutating Disc Meter
Model: 825

Sotera Positive Displacement - Nutating Disc meter is ideal for end of hose use, in line or mounted to one of our Rotary Vane or 400B Series Diaphragm Pumps. It is able to store and display the current flow amount (total) or the cumulative flow amount (totalizer) in any of six user-specified units.

The rugged corrosion-resistant body for the most demanding applications is easy to install with consistent accuracy up to +/- 0.2%. Battery powered, LCD display.

Features & Benefits

• 2-20 GPM
• +/-0.2% accuracy
• Pressure to 125 psi max
• -10 F - 130 F temperature range
• 360 positioning display
• Quick, one step calibration
• Waterproof, corrosion-resistant
• Glass filled polypropylene housing
• 1 FNPT ports
• Fluorocarbon seals
• Battery powered
• LCD display
• Two alkaline batteries included
• Compatible with pesticides, fertilizers, water, crop oil, gear oil, motor oil, diesel fuel, mineral spirits, ethylene glycol, mild acids, soaps, detergents, diesel exhaust fluid and more
• CE certified

Detailed Information

  Fill-Rite 825 Digital Meter Manual
