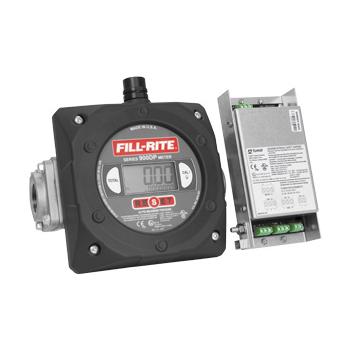

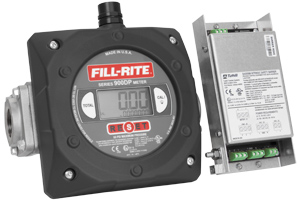

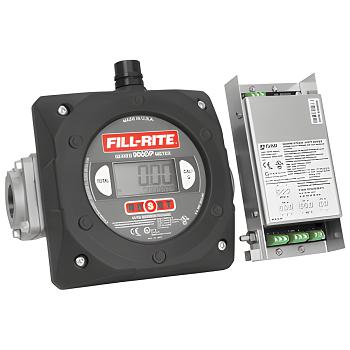

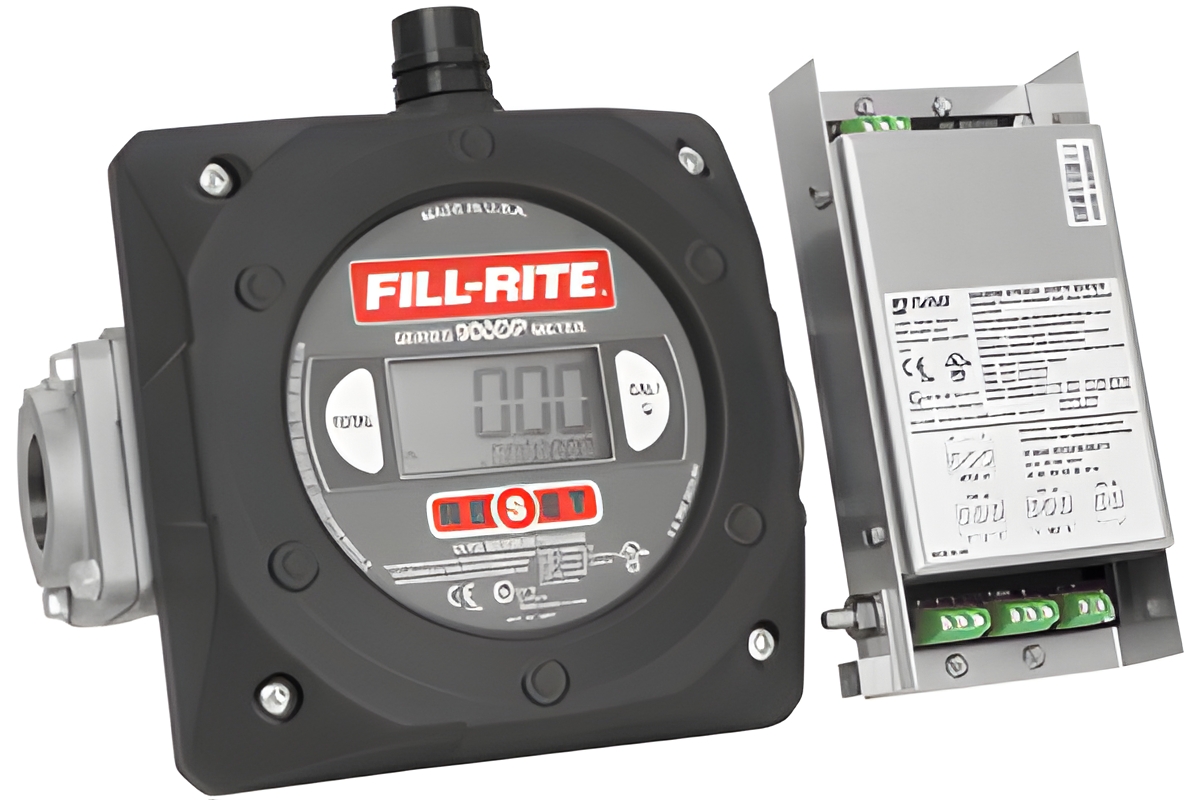

Fill-Rite 900CDP1.5BSPT Digital Meter with 1.5 in Inlet and Outlet
Model: 900CDP1.5BSPT

The 900CDP is the ultimate in convenience.  This meter includes all of the 900CD features plus it comes with a pulser and intrinsically safe barrier.  It also has a backlit display for easier viewing in poor lighting and an AC power with batter backup.  The 900CDP meter is approved for gasoline, diesel, kerosene, mineral spirits, Stoddard solvents, and heptanes.

Features & Benefits

• Meters gasoline, diesel fuel, biodiesel up to B20, kerosene, and E15
• Pulser and intrinsically safe barrier included
• +/-1.25% accuracy
• +/-.25% repeatability
• 50 psi
•  -40 - 176 F (-40-80 C) operating temperature
• 1.5 in. Inlet, 1.5 in. outlet with BSPT threads
• 10:1 pulse output for gallons, liters and quarts
• Wide power input range: 12-40 VDC; .2A and 90-240 VAC, 50-60 HZ
• Nutating disc technology for accurate metering and dependability with fewer moving parts
• UL listed
• Replaces model 900DP1.5BSPT

Detailed Information

  Fill-Rite 900CDP1.5BSPT Digital Meter Manual
