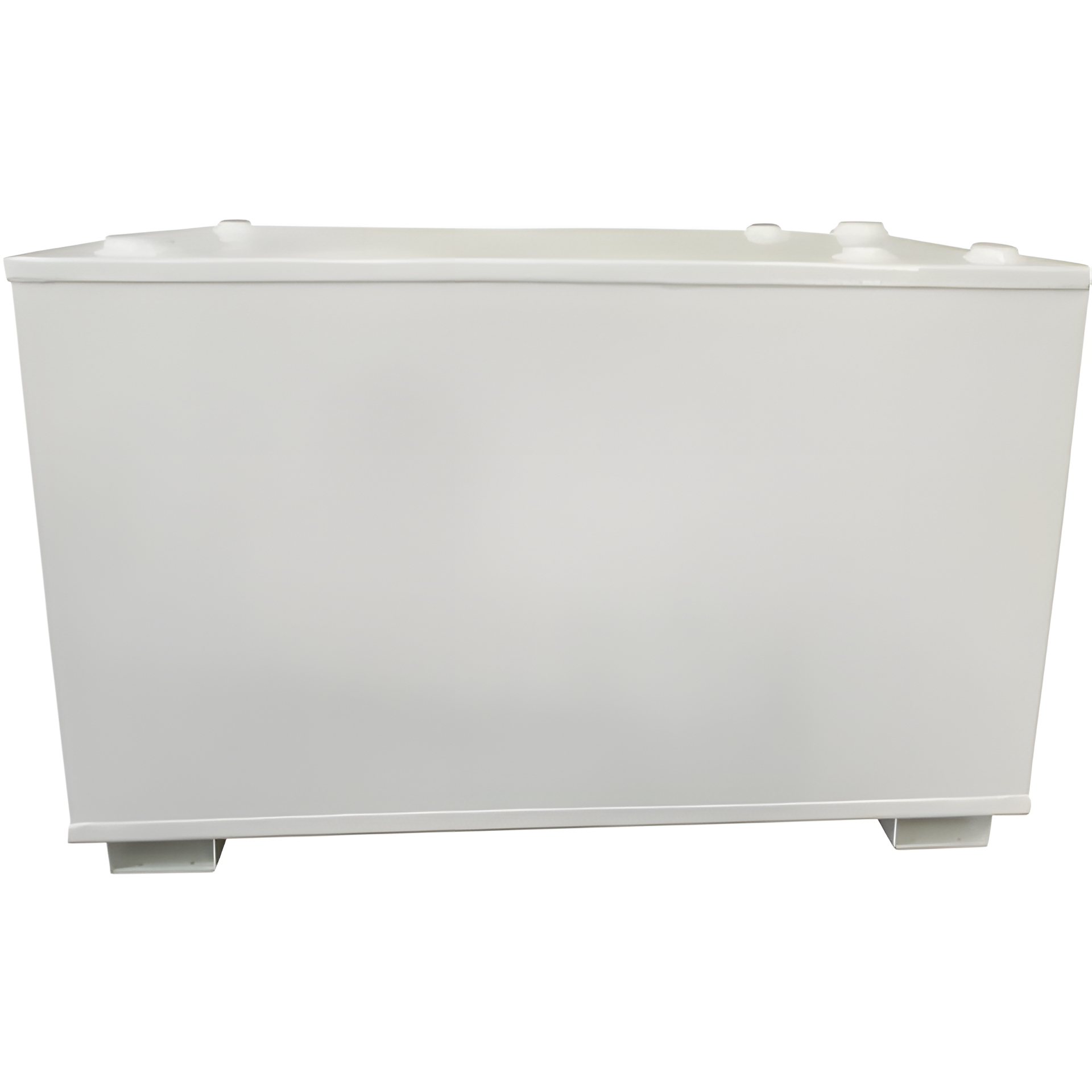

Midwest Industrial Tanks Double Wall Fuel Tank - 500 Gallons
Model: RTD-CC-500

This is the Midwest Industrial Tanks Double Wall Fuel Tank - 500 Gallons. The Midwest Industrial Tanks Double-Wall Fuel Storage Tank has a unique double-wall clamshell design that meets SPCC regulations, eliminating the need for a secondary containment tank. Constructed with a 12-ga. carbon steel outer tank that fully contains the entire contents of the 10-ga. carbon steel inner tank. 500-gal. storage capacity. UL listed.

• Ports provided on both inner and outer tanks for easy access
• Heavy-duty forged steel port flanges allow for use with all necessary vents, fill ports and pumping equipment
• Powder-Coat White Finish
• Phosphate-Coating before Powder-Coating for superior corrosion protection
• Carbon Steel
• Inlet Size: 2"
• Outlet Size 2"
• Tank Type: Stationary
• Built in Heavy Duty fork pockets for easy placement
• UL 142 Listed
• 1 Year Limited Warranty

• (2) 4" Emergency Vents
• Leak Gauge
• Level Gauge
• Lockable Venting Fuel Cap

• Dimensions: 70" L x 46" W x 51" H
• Weight: 1420 lbs.
• Ports: (2) 4" NPT, (7) 2" NPT
• Wall Type: Double Wall
