Newberry Double Wall Skid Tank (UL142) - 550 Gallon

Add Diesel Updraft Vent?:

Add Emergency Vent?:

Add Flip Top Fill Cap?:

Add Fuel Level Gauge?:

Add Fuel Pump?:

Add Gasoline Vacuum Vent?:

Add Leak Gauge?:

Tank Color:

Lead Time: 3-5 Weeks
Ships From: Tennessee

Quantity

Ask A Question

Description
Warranty

Model: NB00550DWS04812G
Manufacturer: Newberry Tanks

This is the Newberry Double Wall Skid Tank - 550 Gallon. Available in either single-wall & dual-wall aboveground skid tanks meet Underwriters' Laboratories UL-142 specification for Aboveground Storage of Flammable and Combustible Liquids. Skid tanks are commonly used for fuel storage & lubricant storage. Dual-wall tanks provide a solution for secondary containment requirements. Newberry's time tested construction ensures long service life. Standard Color White. Optional colors and coatings are available.

Optional Accessories

Emergency Vent: Required for UL142 certified tanks. Provides high capacity pressure relief if the tank is exposed to fire.
Flip Top Fill Cap: Tanks do not come automatically with a fill cap. The flip top fill cap is male threaded and installs directly into a female threaded bung on the top of the tank. The cap provides a direct filling access point when the hinged fill cap is in the open position. When closed, the screened opening protects the tank from debris and insects. The cap is also lockable with a padlock
Vacuum Vent (For Gasoline) or a Updraft Vent (For Diesel): Directs vapors outward and upward in accordance with NFPA 30. Protects the vent line from debris and insects. Water resistant rain cap sheds water away from the vent lines. Slip on design with set screws for easy installation. Internal drain channels water penetration out through the weep hole.
Paint: Newberry tanks come stand in a "gray primer". We recommend adding paint to extend the lifetime of the tank and help with protecting it from the outdoor elements.
Fuel Pumps: We also offer a variety of pumps that can be mounted on the top of the tank and screwed into a 2 inch bung. Please feel free to contact us if you want a quote with a fuel pump.

Specifications

Dimension: 72"L x 48"W x 48"H
Weight (Approx): 1450 lbs.

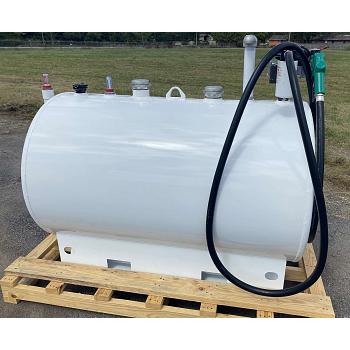

PLEASE NOTE - PICTURE MAY BE INACCURATE. PLEASE VIEW THE PRODUCT DRAWING FOR TANK DETAILS

Drawings

Newberry Double Wall Skid Tank - 550 Gallon

Newberry Tanks Warranty Details:

LIMITATION OF WARRANTY. NO WARRANTY OR GUARANTEE, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY AS TO MERCHANTABILITY OR FITNESS FOR ANY PURPOSE, IS MADE UNLESS THE SAME IS EXPRESSLY SET FORTH HEREIN. NEWBERRY TANKS ARE GUARANTEED TO BE FREE FROM DEFECTIVE WORKMANSHIP AND MATERAL FOR A PERIOD OF ONE (1) YEAR. HOWEVER, NEWBERRY WILL NOT BE LIABLE FOR ANY DAMAGES OR CONTINGENT EXPENSES RESULTING FROM SUCH DEFECTS. NEWBERRY'S ONLY OBLIGATION IS FOR REPAIR OR REPLACEMENT WHICH IS FURTHER LIMITED AS EXPRESSED HEREIN AS TO COST. NEWBERRY TANKS ARE NOT GUARANTEED AGAINST CORROSION. IN NO EVENT SHALL NEWBERRY BE LIABLE FOR PERSONAL INJURY, OR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION OR ANY OTHER COMMERCIAL DAMAGES OR LOSSES, ARISING OUT OF OR RELATED TO PURCHASER'S USE OR INABILITY TO USE THE TANK(S), HOWEVER CAUSED, REGARDLESS OF THE THEORY OF LIABILITY (CONTRACT, TORT OR OTHERWISE) AND EVEN IF NEWBERRY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT SHALL NEWBERRY'S LIABILITY FOR ALL DAMAGES EXCEED THE ORIGINAL PURCHASE PRICE OF THE TANK(S).

TANK(S) IN THIS AGREEMENT ARE DESIGNED FOR ATMOSPHERIC PRESSURE. PROPER VENTING REQUIRED. NOT DESIGNED FOR OVER THE ROAD USE. BUYER ASSUMES ALL LIABILITY FOR ALTERNATIONS, ADDITIONS OR MODIFICATION IT REQUIRES NEWBERRY TO MAKE TO INDUSTRY STANDARD DESIGNS AND PRODUCTS.
