Newberry Double Wall Skid Tank (UL142) - 4000 Gallon 1
Newberry Double Wall Skid Tank (UL142) - 4000 Gallon 2Newberry Double Wall Skid Tank (UL142) - 4000 Gallon 3Newberry Double Wall Skid Tank (UL142) - 4000 Gallon 4Newberry Double Wall Skid Tank (UL142) - 4000 Gallon 5
Add Diesel Updraft Vent?:

Add Emergency Vent?:

Add Flip Top Fill Cap?:

Add Fuel Level Gauge?:

Add Fuel Pump?:

Add Gasoline Vacuum Vent?:

Add Leak Gauge?:

Tank Color:

Lead Time:  9-11 Weeks
Ships From: Arkansas

Quantity

Customer Reviews
Share this page!
Twitter

Model: NB04000DWS06407G
Manufacturer: Newberry Tanks

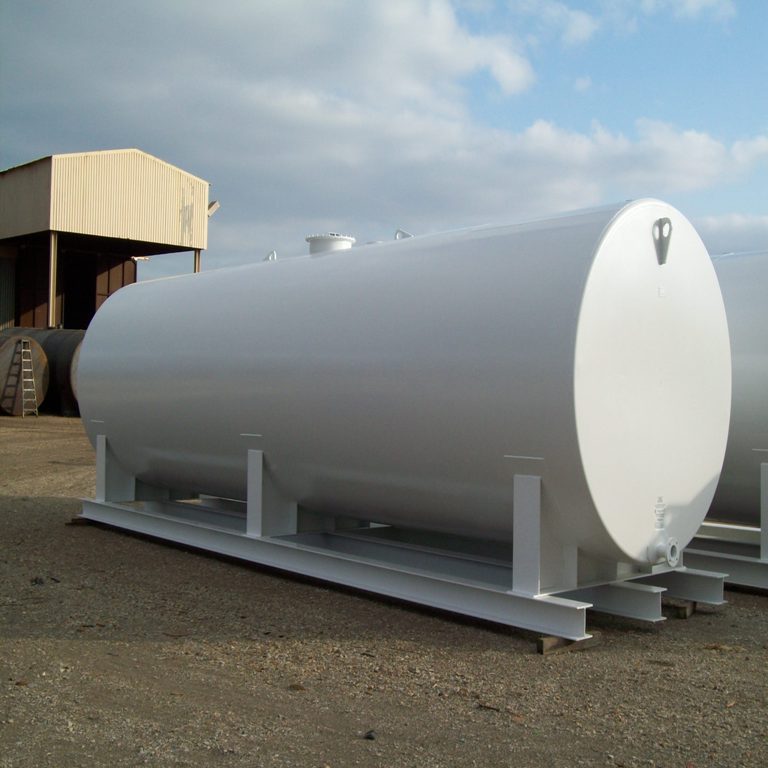

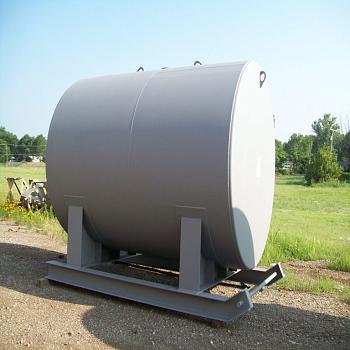

This is the Newberry Double Wall Skid Tank - 4000 Gallon. Available in either single-wall & dual-wall aboveground skid tanks meet Underwriters' Laboratories UL-142 specification for Aboveground Storage of Flammable and Combustible Liquids. Skid tanks are commonly used for fuel storage & lubricant storage. Dual-wall tanks provide a solution for secondary containment requirements. Newberry's time tested construction ensures long service life. Standard Color White. Optional colors and coatings are available.

Optional Accessories
  • Emergency Vent: Required for UL142 certified tanks. Provides high capacity pressure relief if the tank is exposed to fire.
  • Flip Top Fill Cap: Tanks do not come automatically with a fill cap. The flip top fill cap is male threaded and installs directly into a female threaded bung on the top of the tank. The cap provides a direct filling access point when the hinged fill cap is in the open position. When closed, the screened opening protects the tank from debris and insects. The cap is also lockable with a padlock
  • Vacuum Vent (For Gasoline) or a Updraft Vent (For Diesel): Directs vapors outward and upward in accordance with NFPA 30. Protects the vent line from debris and insects. Water resistant rain cap sheds water away from the vent lines. Slip on design with set screws for easy installation. Internal drain channels water penetration out through the weep hole.
  • Paint: Newberry tanks come stand in a "gray primer". We recommend adding paint to extend the lifetime of the tank and help with protecting it from the outdoor elements.
  • Fuel Pumps: We also offer a variety of pumps that can be mounted on the top of the tank and screwed into a 2 inch bung. Please feel free to contact us if you want a quote with a fuel pump.
Specifications
  • Dimension: 288"L x 64"W x 64"H
  • Weight (Approx): 7500 lbs.
PLEASE NOTE - PICTURE MAY BE INACCURATE. PLEASE VIEW THE PRODUCT DRAWING FOR TANK DETAILS

Drawings
PDF  Newberry Double Wall Skid Tank - 4000 Gallon
