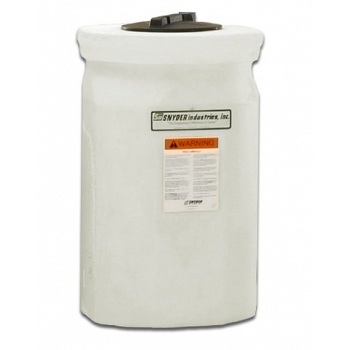

Snyder Dual Containment Tank - 60 Gallon XLPE 1

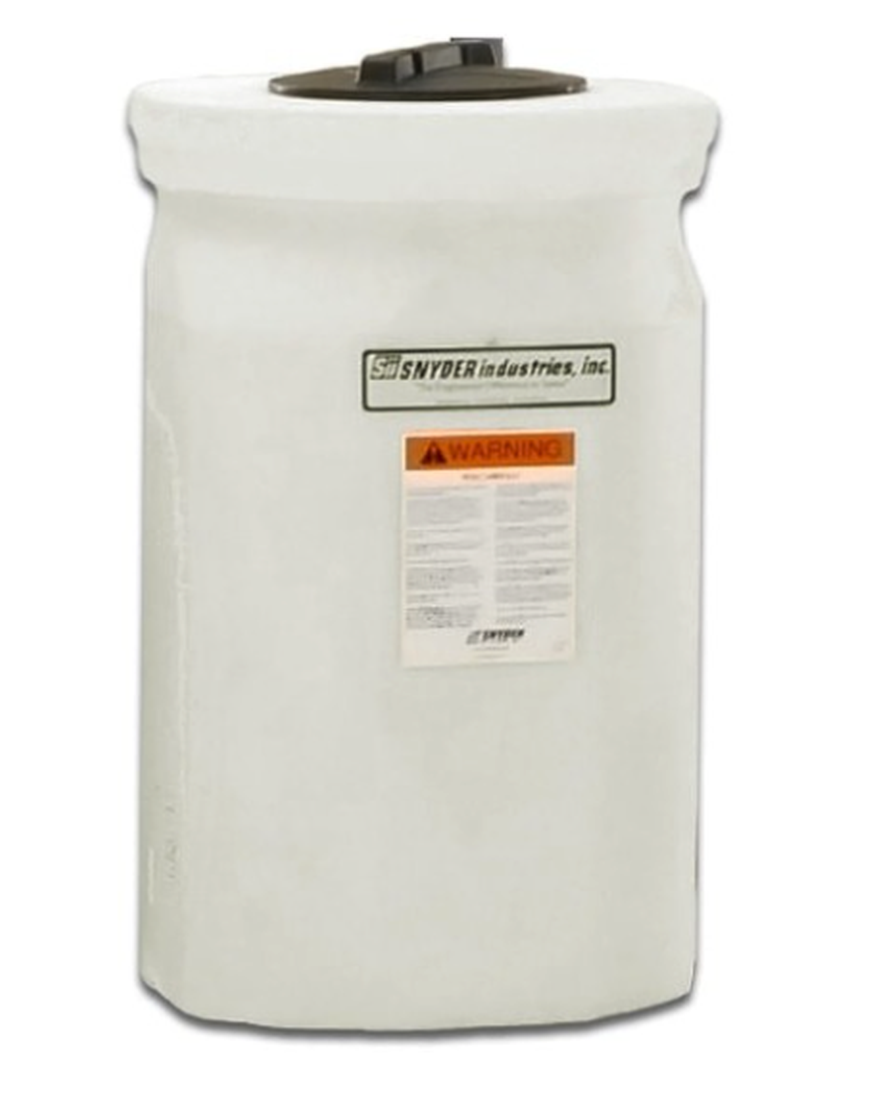

Snyder Dual Containment Tank - 60 Gallon XLPE 2
Snyder Industries
Lead Time:  4-8 Weeks
Ships From: Arkansas

Quantity

Customer Reviews
Share this page!
Twitter

Model: SII-5680002N42
Manufacturer: Snyder Industries

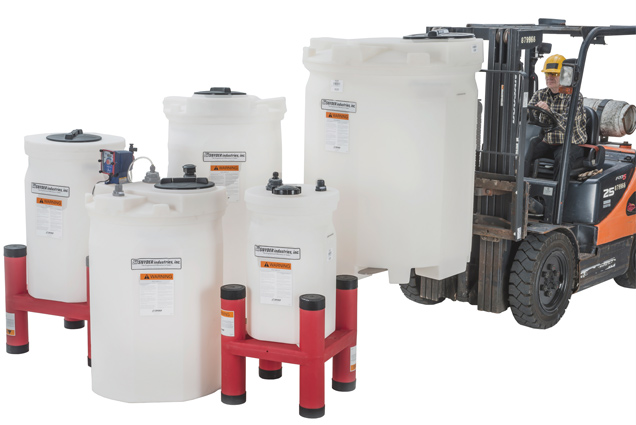

This is the Snyder Dual Containment Tank - 60 Gallon XLPE. The dual containment tank system is ideal for mini-bulk chemical delivery programs. The dual containment tank provides a secondary containment solution in one integral space saving unit. The smaller design configurations are ideal for commercial "Day" tank system requirements and can be used in conjunction with Snyder's extensive line of larger Captor Double Wall Tanks and Containment Systems.



Features include-

  • Top draw-tube assembly enables material contents to be safely dispensed from the top of the tank (optional).
  • Optional vent provides pressure and vacuum relief for interior tank.
  • Transition fitting allows sidewall safe installation and long-term sealing power through both walls of tank (optional).
  • Flat surface areas provide ample space on top for a variety of fitting sizes and styles.
  • Two tanks within one design provide double-wall protection.
  • Narrow diameter provides location versatility in that it can fit through most any doorway on sizes up to 250 gallons.
  • Secondary containment tank provides 115 - 120% of inner tank’s capacity. Complies with 40 CFR264.193.
  • Molded in tie-down lugs interface with optional cable restraint system to meet seismic and 150 mph wind load requirements.
  • All materials are UV stabilized for long-term outdoor service.
  • Industrial (ASTM D1998) design standards.



Detailed Specifications-

  • Primary Tank Capacity: 60 gallon
  • Length: 26 in
  • Width: 26 in
  • Height: 41 in
  • Weight: 55 lbs
  • Primary Tank Specific Gravity: 1.9
  • Primary Tank Material: Cross-linked, high density polyethylene (XLPE)
    • Optional upgrade for sulfuric acid resin #880046 - contact us for a quote.
    • Optional upgrade for sodium hypochlorite opaque white resin #880059 - contact us for a quote.
  • Secondary Outer Containment Tank Material: High-density linear polyethylene (HDLPE) with 1.9 specific gravity. This high-density linear polyethylene complies with FDA Regulation 177.1520 and NSF/ANSI 61 standards.
    • Optional upgrade for cross-linked, high density polyethylene (XLPE) with specific gravity of 1.9 in the natural white color - contact us for a quote.
  • Color: Natural White
  • Fill Opening: 14 inch threaded, vented manway
  • Note: Images may not be 100% accurate, please refer to product drawing.


Drawings & Manuals
Please note that all Snyder tanks may have a 1% to 3% variance from the reported actual dimensions.

PDF  Snyder Dual Containment Tank - 60 Gallon XLPE

PDF  Snyder Double Wall Tank Systems Brochure

Customer Pickup Locations
PDF  Snyder Customer Pickup Locations And Addresses
Please Note: Customer pickup is available for a flat $25 fee.
Snyder Industries
Snyder Warranty Details:

STANDARD LIMITED WARRANTY

Distributors and their authorized distribution have the responsibility of calling to the attention of their customers any exceptions to the Snyder Industries standard limited warranty, prior to acceptance of an order from the customer for any Snyder Industries product.

Snyder Industries warrants to the purchaser for use that if any manufactured tank product is proven to be defective in material or workmanship within 3 YEARS from the date of original invoice from factory, and Snyder Industries is notified within 15 days after such defect is discovered, Snyder Industries will (at company option) either replace or repair said part. Snyder Industries warrants to the purchaser for use that if any tank fitting, attachment, or accessory product is proven to be defective in material or workmanship within 1 YEAR from the date of original invoice from factory, and Snyder Industries is notified within 15 days after such defect is discovered, Snyder Industries will (at company option) either replace or repair said part. This Snyder Industries Standard Limited Warranty does not apply to damage resulting from misuse, improper application of recommended materials, neglect, material wear, accident, or improper installation or maintenance. Said part will not be considered defective if it substantially fulfills performance specifications. THE FOREGOING STANDARD LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OF MERCHANTABILITY, FITNESS FOR PURPOSE AND OF ANY OTHER TYPE, WHETHER EXPRESSED OR IMPLIED. Snyder Industries neither assumes nor authorizes anyone to assume for it any other obligation or liability in connection with said tank product and will not be liable for incidental or consequential damages. THE REMEDIES STATED HEREIN SHALL BE THE EXCLUSIVE REMEDIES AVAILABLE UNDER THIS STANDARD WARRANTY. CLAIMS UNDER THIS STANDARD LIMITED WARRANTY SHALL BE HANDLED UNDER THE SNYDER INDUSTRIES SERVICE POLICY. Snyder Industries will not be responsible for any charges incurred in repairing or servicing any Snyder Industries product except as such repairs are made at Snyder Industries or by Snyder Industries personnel or as approved in writing from Snyder Industries Customer Service.

Due to the uniqueness of tank applications, Snyder Industries may offer warranties other than the standard warranty. These warranty statements will be in writing from Snyder Industries. The warranty period may be longer than 3 years as in the case for purchased extended warranties, or the warranty period may be shorter than 3 years as in the case for certain chemical/material applications. Please consult Snyder Industries if you have any questions regarding warranty coverage and/or requirements.
