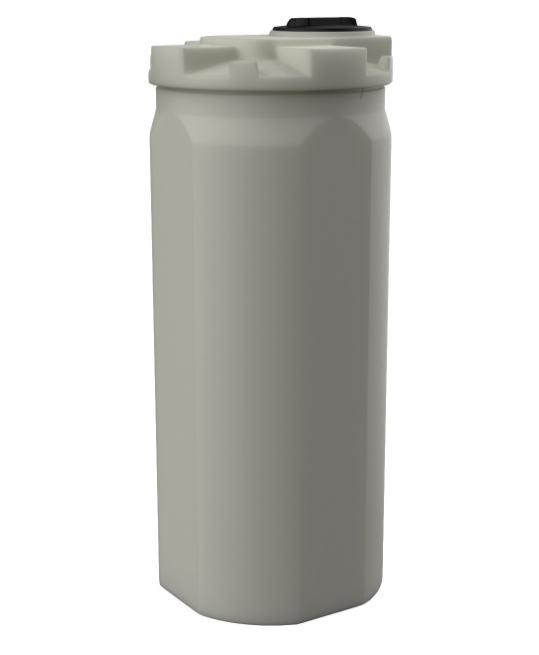

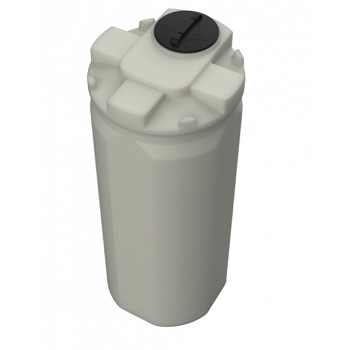

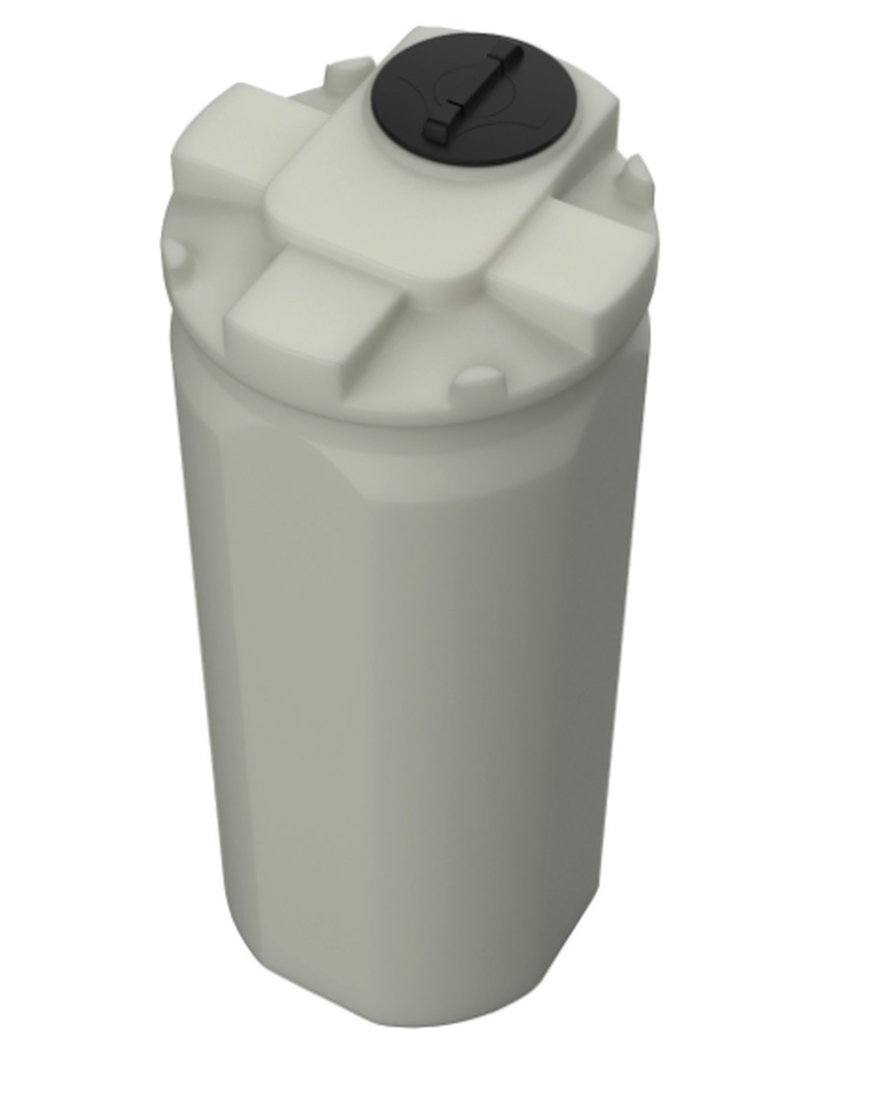

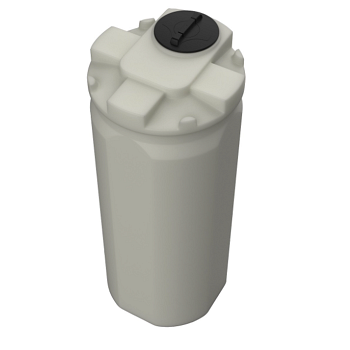

Snyder Dual Containment Tank - 250 Gallon XLPE 1
Snyder Dual Containment Tank - 250 Gallon XLPE 2Snyder Dual Containment Tank - 250 Gallon XLPE 3
Snyder Industries
Lead Time:  4-8 Weeks
Ships From: Nebraska

Quantity

Customer Reviews
Share this page!
Twitter

Model: SII-5990502N42
Manufacturer: Snyder Industries

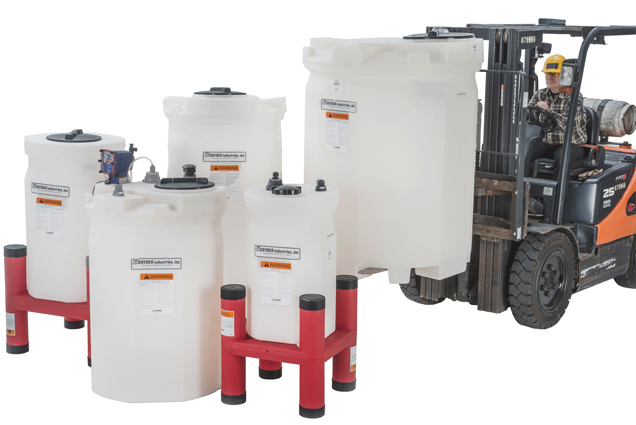

This is the Snyder Dual Containment Tank - 250 Gallon XLPE. The dual containment tank system is ideal for mini-bulk chemical delivery programs. The dual containment tank provides a secondary containment solution in one integral space saving unit. The smaller design configurations are ideal for commercial "Day" tank system requirements and can be used in conjunction with Snyder's extensive line of larger Captor Double Wall Tanks and Containment Systems.



Features include-

  • Top draw-tube assembly enables material contents to be safely dispensed from the top of the tank (optional).
  • Optional vent provides pressure and vacuum relief for interior tank.
  • Transition fitting allows sidewall safe installation and long-term sealing power through both walls of tank (optional).
  • Flat surface areas provide ample space on top for a variety of fitting sizes and styles.
  • Two tanks within one design provide double-wall protection.
  • Narrow diameter provides location versatility in that it can fit through most any doorway on sizes up to 250 gallons.
  • Secondary containment tank provides 115 - 120% of inner tank’s capacity. Complies with 40 CFR264.193.
  • Molded in tie-down lugs interface with optional cable restraint system to meet seismic and 150 mph wind load requirements.
  • All materials are UV stabilized for long-term outdoor service.
  • Industrial (ASTM D1998) design standards.



Detailed Specifications-

  • Primary Tank Capacity: 250 gallon
  • Length: 34 in
  • Width: 34 in
  • Height: 83 in
  • Weight: 150 lbs
  • Primary Tank Specific Gravity: 1.9
  • Primary Tank Material: Cross-linked, high density polyethylene (XLPE)
    • Optional upgrade for sulfuric acid resin #880046 - contact us for a quote.
    • Optional upgrade for sodium hypochlorite opaque white resin #880059 - contact us for a quote.
  • Secondary Outer Containment Tank Material: High-density linear polyethylene (HDLPE) with 1.9 specific gravity. This high-density linear polyethylene complies with FDA Regulation 177.1520 and NSF/ANSI 61 standards.
    • Optional upgrade for cross-linked, high density polyethylene (XLPE) with specific gravity of 1.9 in the natural white color - contact us for a quote.
  • Color: Natural White
  • Fill Opening: 14 inch threaded, vented manway
  • Note: Images may not be 100% accurate, please refer to product drawing.


Drawings & Manuals
Please note that all Snyder tanks may have a 1% to 3% variance from the reported actual dimensions.

PDF  Snyder Dual Containment Tank - 250 Gallon XLPE

PDF  Snyder Double Wall Tank Systems Brochure

Customer Pickup Locations
PDF  Snyder Customer Pickup Locations And Addresses
Please Note: Customer pickup is available for a flat $25 fee.
