ATI GPI Mechanical Fuel Meter

Lead Time: 3-10 Days
Ships From: Florida

Quantity

Description
Warranty

Model: BS-M30-G8N
Manufacturer: Aluminum Tank Industries

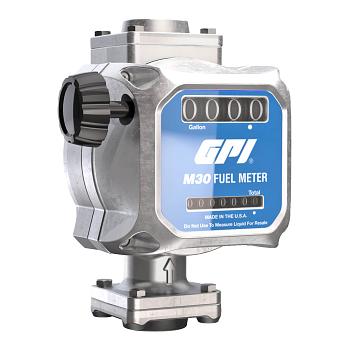

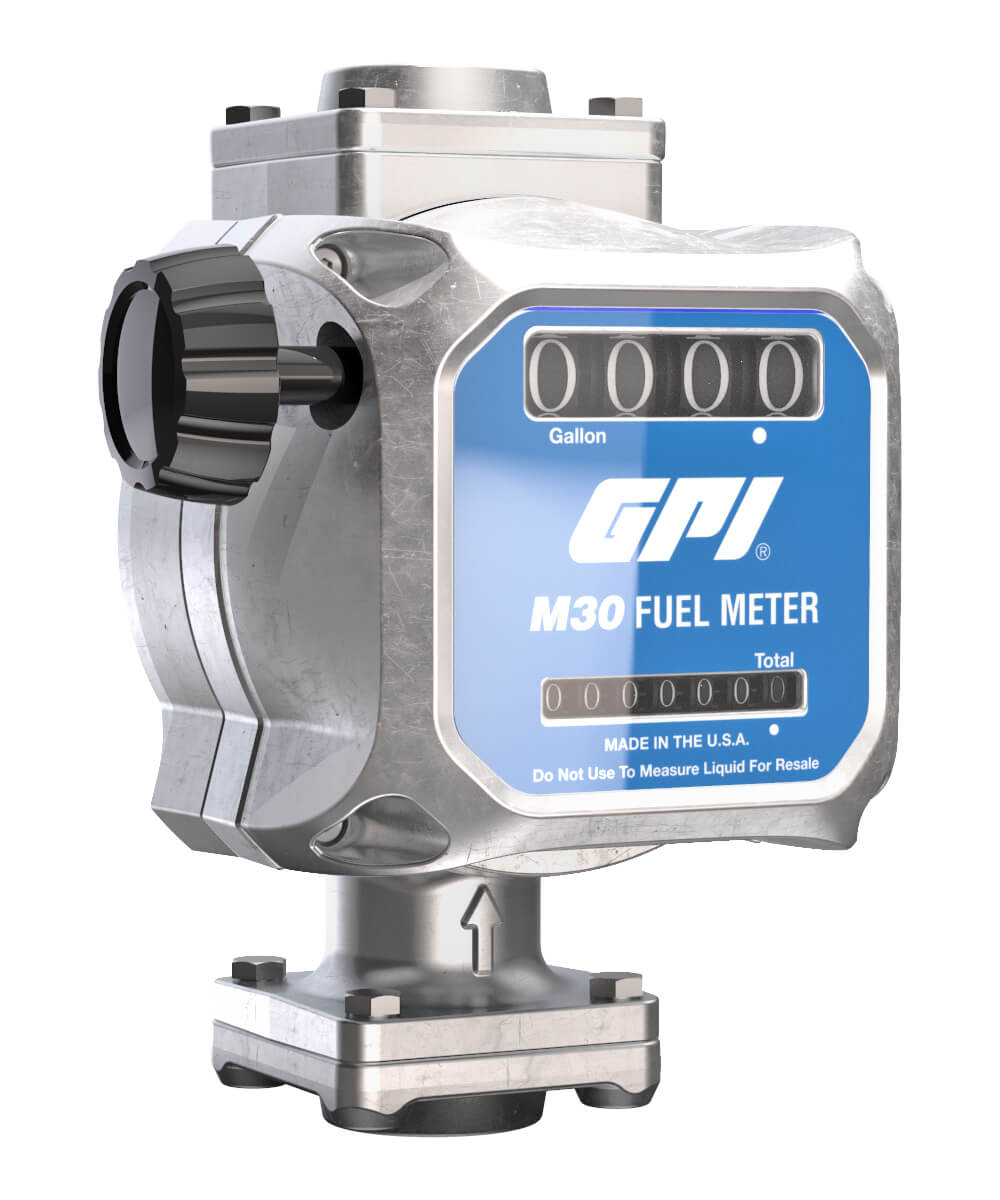

This is the GPI Mechanical Fuel Meter. The GPI M30 mechanical fuel meter is designed for the field measurement of thin viscosity petroleum fuel only and intended for use with pump systems in 5 to 30 GPM (19 to 114 L/min) flow range. This meter translates flow data from a nutating disk into calibrated units. Pump and meter combinations available. The M30 easily attaches to the new modular fuel transfer pumps with the Quick-Fit modular feature (simple four-bolt connections). This quick-fit modular fuel meter is easy to install, easy to use, and easy to maintain.

Inlet & Outlet: 1 Inch NPT

Features

Internal strainer is quickly accessible for easy maintenanace
Compact, lightweight housing of cast aluminum
Includes field calibration

Benefits Include:

Easily attaches to the G20 fuel transfer pump, Gallon register
Features simple four-bolt connections that allow the meter to be mounted in multiple directions
Unsurpassed accuracy. Meter is within a +/- 2% accuracy across a flow range from 5 to 30 GPM.
Durable aluminum housing; magnetic drive replaces the driveshaft and seal, eliminating driveshaft leaks
Twist knob reset; batch total and cumulative total display

Aluminum Tank Industries (ATI) Warranty Details:

Aluminum Tank Industries, Inc. warrants all products to be free of defects in material or workmanship for a period of 1 year from invoice ship date from our warehouse. Severe Series refueling tanks are covered for 5 years. Standard duty tanks are designed for use with transfer pumps up to 30 lbs. Installing a pump over 30 lbs on a standard duty tank will void warranty. A Severe Series tank is required if using a transfer pump over 30 lbs. If upon our inspection we deem the item to be defective, Aluminum Tank Industries, Inc. will determine whether to repair or replace the defective item. It is the customers responsibility to ship the item to Aluminum Tank Industries, Inc. No cost for labor, installation, or missing contents will be reimbursed. Damages due to shipping and handling, improper installation, abuse - intentional or accidental, or normal wear and tear are not covered by this warranty. Warranty is void if the tank has been altered.
