Model: BM-4IN-STD-KIT
Manufacturer: Bushman USA

This is the Bushman Deluxe Rainharvesting Kit for customers that have a Bushman Rainwater tank and homes with 4 Inch downspouts. The kit consists of the following items:

1 x Leaf Eater Advanced Rain Head
1 x 4 Inch First Flush Diverter Kit
1 x 4 Inch High Flow Flap Valve

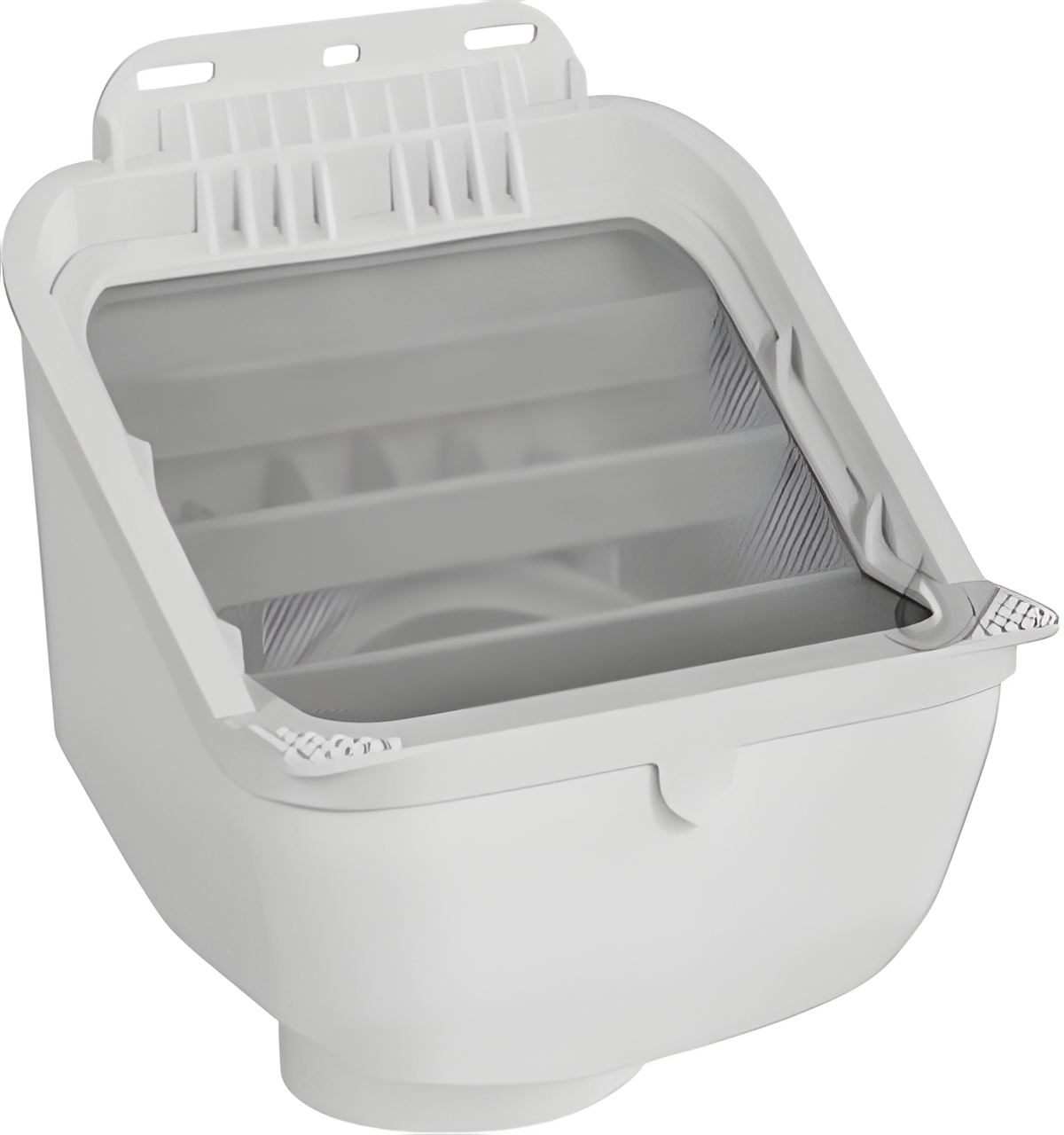

Leaf Eater Advanced Rain Head Information

The Leaf Eater Advanced Rain Head is the next generation Rain Head, featuring the new patented Clean Shield (single screen) technology and VH Pivot outlet. The Leaf Eater Advanced Rain Head is available for 4" downpipes and prevents debris from entering the Rain Harvesting system, which improves water quality and reduces tank maintenance. The single screen incorporates Clean Shield technology which deflects leaves and debris away from the flow of water. This minimizes maintenance and enhances catchment efficiency. This Rain Head incorporates a VH Pivot outlet that swivels to suit vertical or horizontal downpipes. The Leaf Eater Advanced can also be used as a debris removing device even when rainwater is not being collected.

Features and Benefits

Compact, versatile rain head for quick and easy installation
Patented single screen technology for advanced debris shedding (Clean Shield)
Minimal maintenance
Pivot the outlet to suit vertical or horizontal (rear outlet) downpipes - variety of installation options in one product (VH Pivot)
High flow rate performance
Superior catchment efficiency at low and high flow rates
Single screen with 0.955mm aperture mosquito proof stainless steel mesh
Available in 90mm or 100mm outlet

First Flush Diverter Information

Downspout First Flush Water Diverters improve water quality and reduce tank/cistern maintenance by preventing the first flush of water from entering your rainwater tank. First Flush Diverters help ensure cleaner water is available for use, which protects rainwater pumps, water filters and internal household appliances (if whole home system) such as washing machines and toilets. If you think about how much time goes by in between rains, your roof will get dirty with dirt, pollen, bird and squirrel droppings, etc. First Flush Diverters, such as the 3" and 4" kits, are installed at each downspout that supplies water to the tank/cistern. These utilizes a ball and seat system - a simple automatic system that does not rely on mechanical parts or manual intervention. As the water level rises in the diverter chamber, the ball floats, and once the chamber is full, the ball rests on a seat inside the diverter chamber preventing any further water from entering the diverter. The subsequent flow of water is then automatically directed along the pipe system to the tank/cistern.

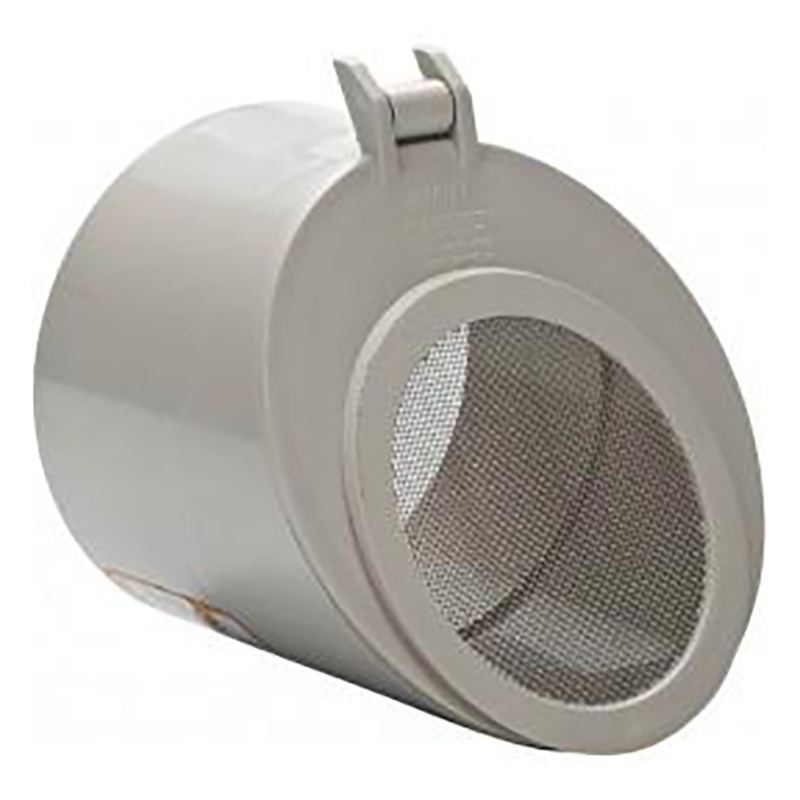

High Flow Flap Valve Information

4 inch Hi-Flow Flap Valves allow a rapid flow of rainwater through a down pipe or overflow pipe while being equipped with a flap that cannot be over rotated and left open. Once there is no demand of rainwater, the flap automatically closes to provide further mosquito protection and preventing birds from building a nest in your overflow pipe. Available in 3 inch or a 4 inch model, 4 inch High Flow Flap Valves (also known as a 4 inch Mozzie Stopper) can also be used for installing at the end of your SCH40 Inlet Pipe that dumps into your rainwater tank screen.

Features:

Makes your Overflow Pipe Mosquito and Pest proof
Allows stored water to breathe and stay fresh
1/32 inch aperture, grade 316 stainless steel mesh
Flap Opens automatically when there is Overflow demand
Flap Closes automatically when there is no demand
Flap keeps Birds from building a nest in your Overflow Pipe
Also used on Inlet Pipes for keeping out critters and mosquitoes

Bushman Warranty Details:

Bushman Water Harvesting Corporation (dba Bushman USA) Limited Warranty BUSHMAN WATER HARVESTING CORPORATION (dba Bushman USA) (Seller) warrants its water storage tanks sold in the United States against defects in materials or workmanship for three (3) years from the date of purchase. The Limited Warranty is dependent upon installation in accordance with Seller's specifications and the use of Seller's components, accessories and designated application practices exclusively. If a defect is discovered in normal use of a tank in the manner intended, Seller will, at its sole election, repair or replace the tank. In no event will Seller's responsibility exceed the purchase price of the tank received by Seller. Additional requirements or terms of this Limited Warranty are:

1. The Limited Warranty extends to the original purchaser only and is not transferable by operation of law or otherwise.

2. The Limited Warranty is limited to the repair or replacement of the tank, at the sole discretion of Seller. Seller is not liable for any damage to property or any other associated costs that may occur when repair or replacement of the tank is carried out. Repair work is undertaken at ground level, so tanks that are located on stands must be brought down to ground level before Seller can commence repair work.

Note that expenses such as landscaping, plumbing, electrical, costs of lifting equipment and hire of additional labor are at purchaser's expense. Bringing tanks down from stands for repair work is also at the purchaser's expense.

3. The Limited Warranty does not apply to the tank color, which may in time fade or change.

4. The Limited Warranty applies to the one piece polyethylene structure of the tank and does not extend to fittings such as the strainer, outlet, valve, tap, overflow or any other fittings, accessories or ancillary components. Some fittings, accessories and ancillary components are covered under a separate limited warranty program, which is available upon request.

5. The Limited Warranty on water tanks is for the storage of water only, at a water temperature not exceeding 73F/23C. The Limited Warranty does not apply to tank damage due to freezing.

6. The Limited Warranty on water tanks is for storage of water on the site only. Transporting water in water tanks voids the Limited Warranty.

7. The Limited Warranty is void and will not be binding upon Seller in the event of damage to unsecured tanks through blowing away, or by abuse, improper installation, unsound base, or unauthorized modifications to the tank.

Note that all installation instructions must be followed and in particular the fitting of flexible hoses.

8. Seller must be notified of any defect or fault (using a Seller-approved claim form) within seven (7) days of it occurring. Seller must be given the opportunity to inspect the tank within thirty (30) days of such notification, otherwise the Limited Warranty is void.

9. THIS LIMITED WARRANTY IS THE EXCLUSIVE WARRANTY PROVIDED BY SELLER AND IS IN LIEU OF, AND SELLER DISCLAIMS, ALL OTHER WARRANTIES, EXPRESS AND IMPLIED, INCLUDING, WITHOUT LIMITATION, (I) ANY IMPLIED WARRANTY OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE, (II) ANY IMPLIED WARRANTY ARISING FROM COURSE OF PERFORMANCE, COURSE OF DEALING OR USAGE OF TRADE, (III) ANY OTHER OBLIGATIONS OR LIABILITIES WHATSOEVER, WHETHER IN CONTRACT, WARRANTY OR TORT, OR BY STATUTE OR OTHERWISE FOR ANY NONCONFORMANCE, DEFECT, DEFICIENCY, FAILURE, MALFUNCTION OR FAILURE TO PERFORM, (IV) STRICT LIABILITY OR PRODUCT LIABILITY, AND (V) ANY DIRECT, INDIRECT, SPECIAL, CONSEQUENTIAL AND INCIDENTAL DAMAGES OF ANY NATURE WHATSOEVER.
