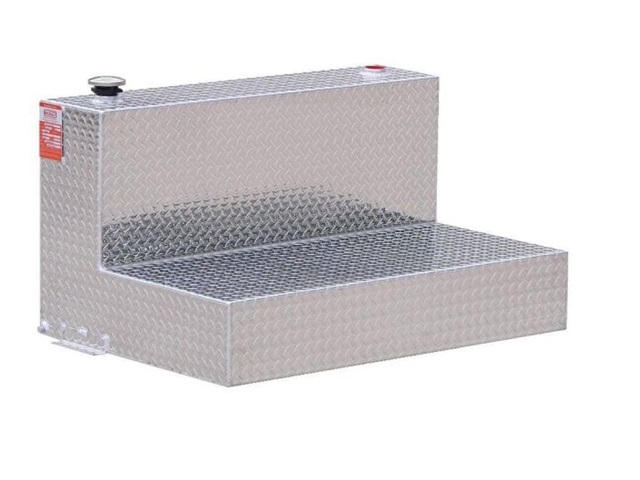

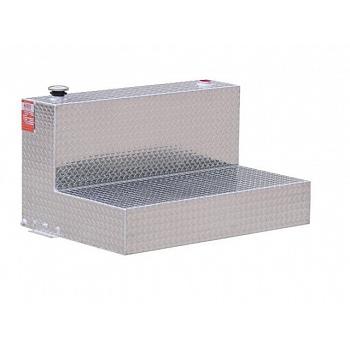

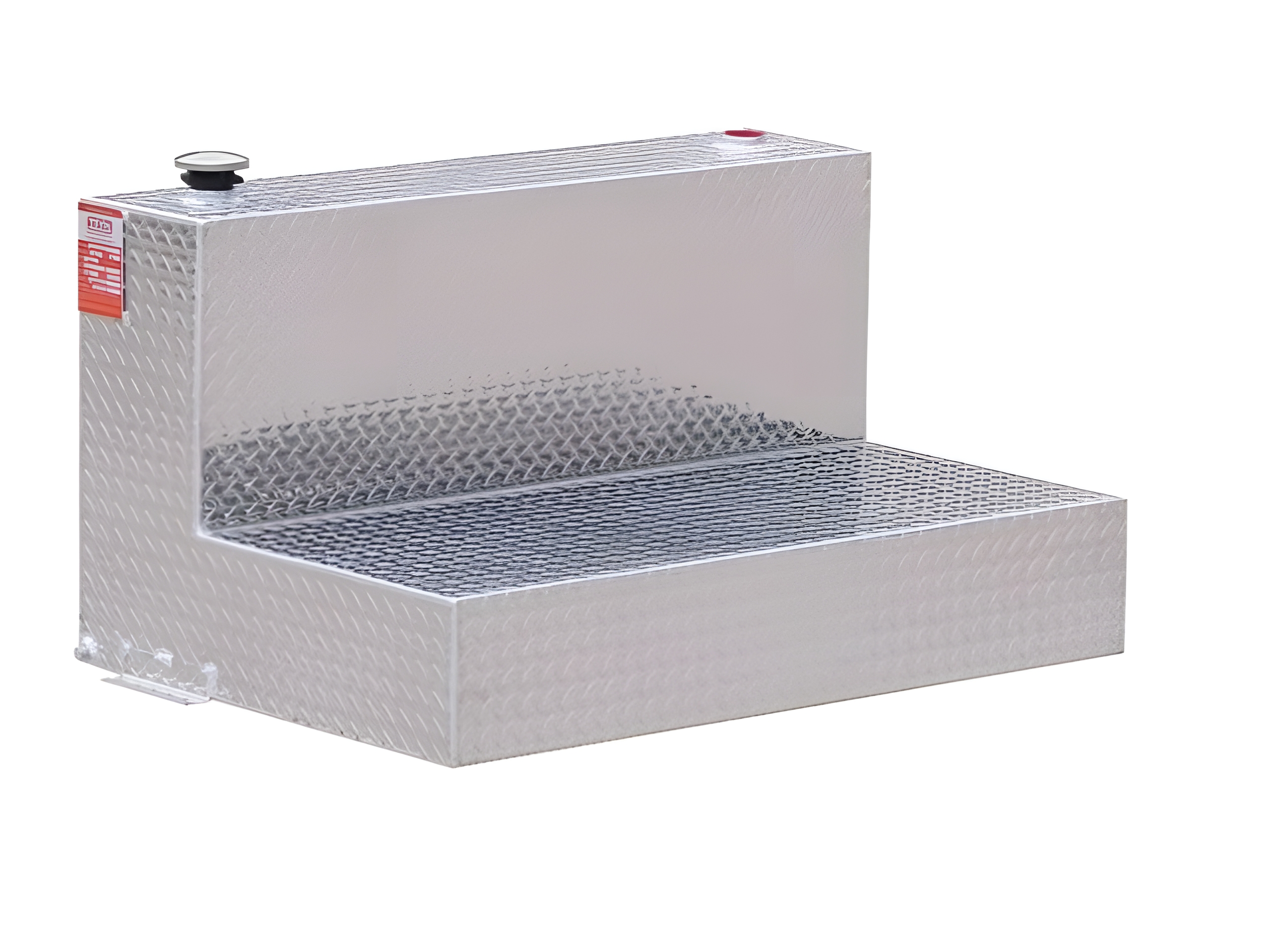

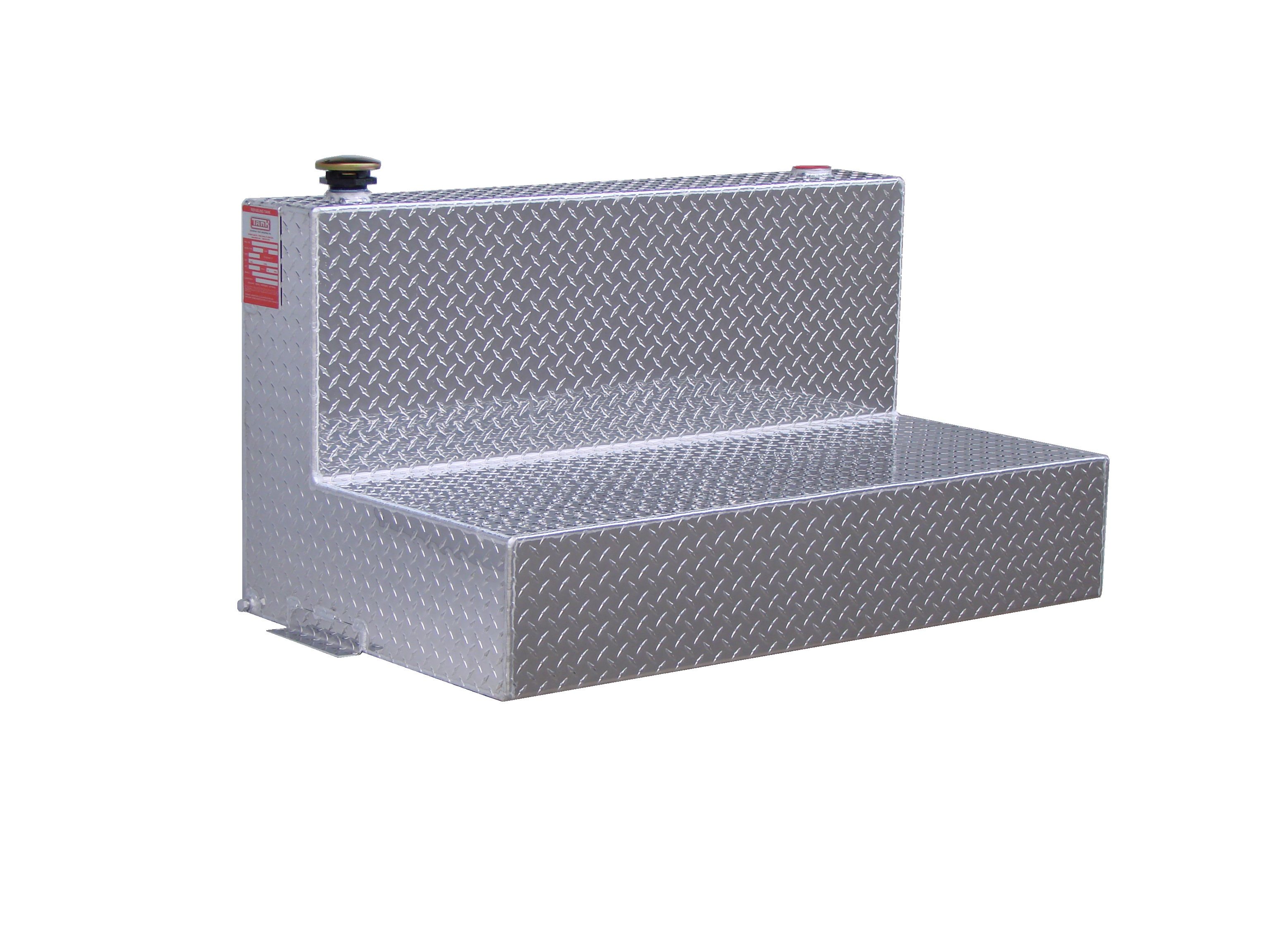

ATI 80 Gallon L-Shape Refueling Tank

Add Lockable Tank Cap?:

Powder Coat?:

Lead Time: 1-2 Weeks
Ships From: Florida

Quantity

Ask A Question

Description
Warranty

Model: ATI-TTL80
Manufacturer: Aluminum Tank Industries

The ATI 80 Gallon L-Shape Refueling Tank comes with the following features:

Diamond plate .125" aluminum construction. (Heavy duty .190" aluminum is also available - please contact us for a quote!)
Special Permit issued by the US Department of Transportation
Legal for Gas, Diesel, Methanol, Kerosene, Aviation fuel and other liquids
Commercial grade lockable vent/prevent filler cap
Fully baffled to reduce movement of contents
Two-2" npt reinforced bungs for superior strength
3/8" npt drain
Hold down brackets
Pressure and leak detection test
Clean and free of debris inside and outside of the tank
1 year limited warranty
NOTE: The back and bottom side of this tank is made with smooth aluminum and is not diamond plated

Our L-shape Refueling Tanks were designed to be used with a crossover style toolbox or chest box. The bottom of the L-shape fits under most standard toolboxes. The fuel tank can also be installed in reverse so the fuel tank can be removed without removal of your toolbox. The Two- 2" bungs allow for reversing the fuel fill cap and fuel transfer pump to the side you prefer best.

Please be aware that tanks/toolboxes may have mounting tabs that extend the dimensions of the tank by 1 1/2 inches on each side. This is NOT accounted for when viewing the displayed dimensions of the tanks/toolboxes. In addition, the fuel cap adds an additional 2 1/2 inches to the total height of the tank. Please be sure to account for this when measuring for fitment of your tank/toolbox.

Detailed Information

Refueling Tank Installation Instructions

Need a custom tank? No problem! Please click here to select a custom tank style and provide us with your requirements!

ATI Fuel Tank Sizes

Aluminum Tank Industries (ATI) Warranty Details:

Aluminum Tank Industries, Inc. warrants all products to be free of defects in material or workmanship for a period of 1 year from invoice ship date from our warehouse. Severe Series refueling tanks are covered for 5 years. Standard duty tanks are designed for use with transfer pumps up to 30 lbs. Installing a pump over 30 lbs on a standard duty tank will void warranty. A Severe Series tank is required if using a transfer pump over 30 lbs. If upon our inspection we deem the item to be defective, Aluminum Tank Industries, Inc. will determine whether to repair or replace the defective item. It is the customers responsibility to ship the item to Aluminum Tank Industries, Inc. No cost for labor, installation, or missing contents will be reimbursed. Damages due to shipping and handling, improper installation, abuse - intentional or accidental, or normal wear and tear are not covered by this warranty. Warranty is void if the tank has been altered.
